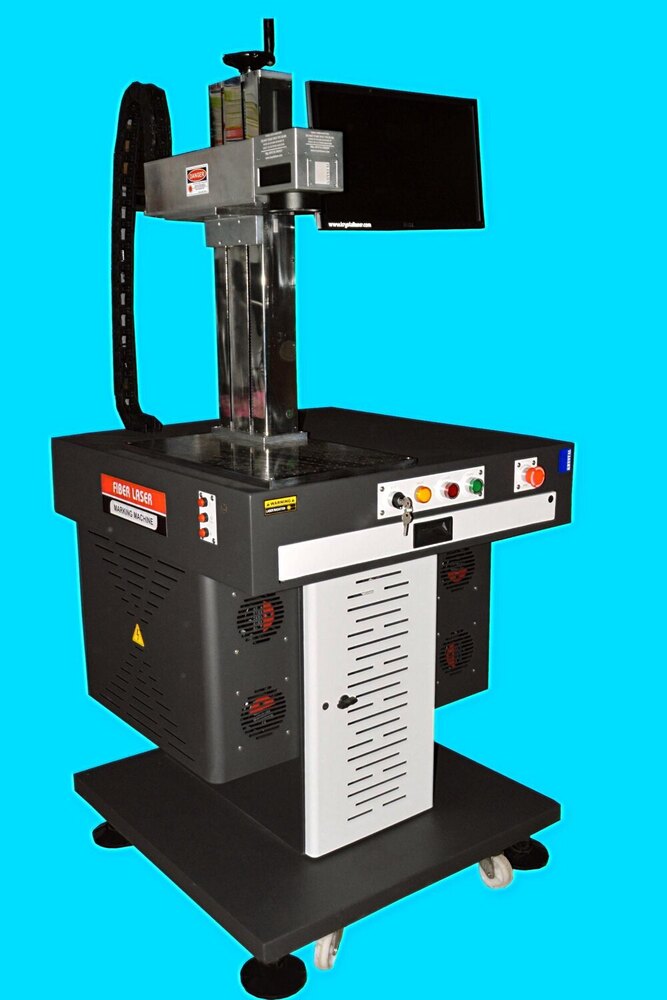

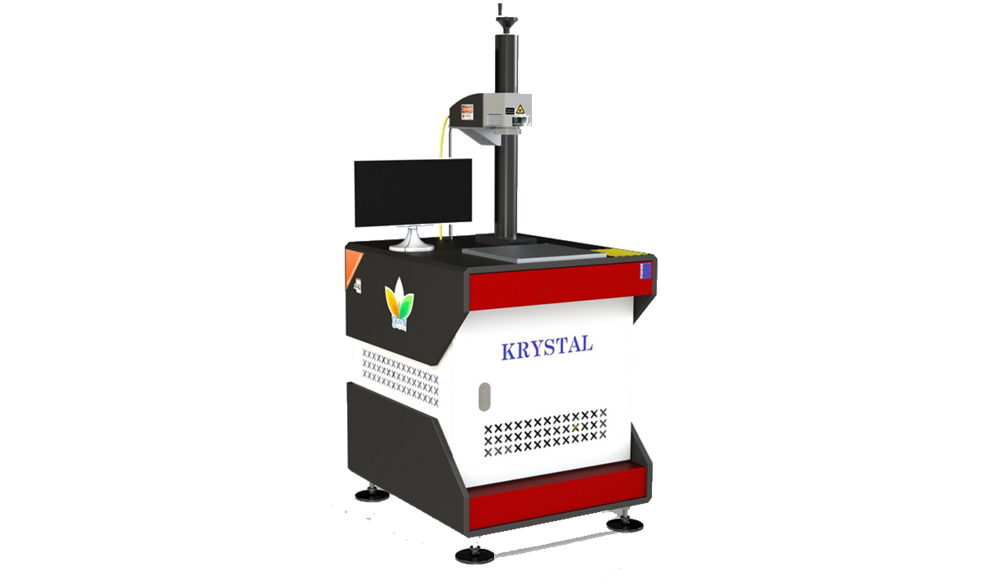

Fiber Laser Marking Machine
Product Details:
- Product Type Fiber Laser Marking Machine
- Condition New
- Laser Type Fiber Laser
- CNC 1
- Cooling Mode Air Cooling
- Click to View more
X
Fiber Laser Marking Machine Price And Quantity
- 1 Unit
Fiber Laser Marking Machine Product Specifications
- 1
- Air Cooling
- New
- Fiber Laser Marking Machine
- Fiber Laser
Fiber Laser Marking Machine Trade Information
- Ahmedabad
- Cash in Advance (CID)
- 5 Unit Per Week
- 25 Days
- Yes
- Free samples available with shipping and taxes paid by the buyer
- Wooden
- Asia Australia South America Eastern Europe Africa
- All India
- ISO
Product Description
We are a manufacturer, supplier and exporter of Fiber Laser Marking Machine. It is widely used in electronic components, hardware, sensors, auto parts, 3C electronics, crafts, precision apparatuses, electrical industry, daily consumer goods, gifts and ornaments, high-low-voltage appliances, medical equipments, bathroom accessories, IT industry, battery industry, etc. Customers can avail this Fiber Laser Marker Machine in varied technical specifications at negotiable prices.
"Piranha" marking series is Q Switched Fiber Laser Marking System are safe, state-of-the-art and alternatives for Nd:YAG and Nd:YVO4 lasers (Lamp-pumped, side-pumped diode, and End-pumped diode). Components including a Q Switched Fiber Laser with Scan Head, Industrial PC Controller, Power Supply, Marking Software and laser safety enclosure.
Standard configuration for the Fiber Laser Marking Series allow for many different options to meet any production need. Available options including programmable Z -Axis for focal height adjustments, rotary indexers for circumferential marking, rotary dial tables for simultaneous mark and laser operation and X-Y motion systems for increasing marking areas. Additional features include ease of installation allowing for quick start-up and graphical-based programming for a minimal learning curve. Required beyond those listed above will be quoted upon request.
With international high-quality fiber laser, it can mark all sorts of precise patterns according to customer requirements;
Multiple power laser light source, available for many industries;
Fast speed, high efficiency, stable output power, high reliability;
Long life, maintenance-free within 100,000 hours, operated in 24 hours and severe working condition;
High electro-optic conversion efficiency, little energy coupling loss, less power consumption with just 0.5 KW/Hour;
Small and compact size, easy to carry, save production space.
Fiber Laser Marking Machine Technical Specifications:
| Model | SPECTRA -intelliMARK | | | | |
|---|---|---|---|---|---|
| Average Output Power | 10W | 20W | 30W | 40W | 50W |
| Laser Type | Fiber Laser | ||||
| Linear Speed | <7000mm/s | ||||
| Marking Area | 70x70mm 110x110mm (Optional) | ||||
| Wavelength | 1064 +/- 2nm | ||||
| Beam Deflection | Digital High speed Galavanometer | ||||
| Min Character Height | 0.2mm | ||||
| Marking Depth | 0.4mm depending on materials | ||||
| Min Linear Width | 0.01mm | ||||
| Power Supply | AC 220V 50KHz | ||||
| Protective Cover | Optional | ||||
